Description
Stainless 316 Rigging Screws, Turnbuckles, Lag Screws & Fork Terminals for Balustrading

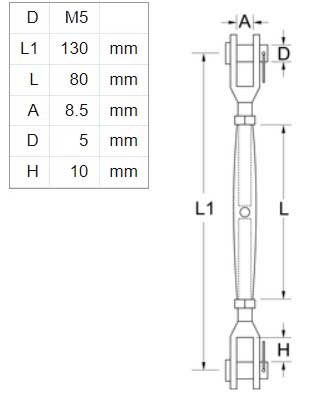

316 Rigging Screw Jaw/Jaw M5 x 130mm
Suits the more flexible 7×7 Wire Rope Cable.
Other hardware required
- Thimble
- Swage
- Saddle
or
- Screw Eye
316 Rigging Screw Jaw/Swage M5 x 3.2mm
Suits the more rigid 1×19 Wire Rope Cable.
Other hardware required
- Fork Terminal
- Saddle
or
- Screw Eye
or
- Lag screw

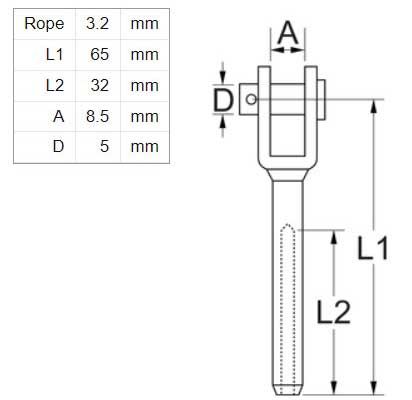

316 Terminal Swage Fork 3.2mm x 65mm
Can be used at the other end of the cable when only 1 turnbuckle per run is required for tension.
Other hardware required
- Turnbuckle

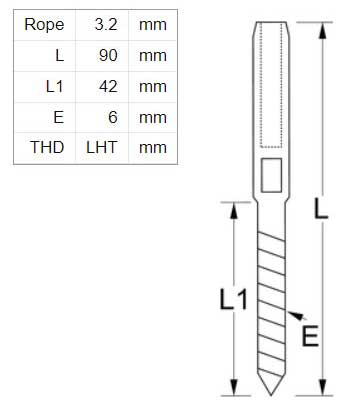

316 Terminal Swage Lag Screw LH 3.2mm
For use with the 1×19 Wire Rope Cable.
Can be used instead of a Fork Terminal and Screweye into timber for a more streamlined look.
A left hand and right hand Lag screw can be used to achieve a short run without required a turnbuckle for tension.
316 Terminal Swage Lag Screw RH 3.2mm
For use with the 1×19 Wire Rope Cable.
Can be used instead of a Fork Terminal and Screweye into timber for a more streamlined look.
A left hand and right hand Lag screw can be used to achieve a short run without required a turnbuckle for tension.
Rigging Screw Spanner
Make sure you grab one of these as well.
A handy little tool for tensioning your turnbuckles.
Alternatively a small screw driver can be used, but this spanner is much easier.
